EF Floated Side Ballscrew End Support
The Supported-Side Support Units are on hand in three series, EF, BF, and FF. These support units are compact in size and enable for easy installation.
Product Introduction
Description
The Supported-Side Support Units are on hand in three series, EF, BF, and FF. These support units are compact in size and enable for easy installation. The supported-side (also referred to as floated side) support units come with a bearing and snap ring to securely mount the finished ball screw shaft to the support unit. (Note: The bearing is not fixed to a position inside the supported-side support unit).
Product Details
Ball screw support, containing for subminiature ball screw developed by contact Angle 45 subminiature angular contact ball bearings, can obtain high rigidity, high precision of regular turning performance.Support the lateral help unit use deep groove ball bearings.Support unit such as EK, BK kind internal bearing load of the right amount of lithium cleaning soap grease, with a special seal gasket to seal, can be installed directly, can use for a lengthy time.
OUR Product
Quality is the life .We use solely the best quality material to make sure the precision of our Product.All products we sold out are strictly chosen and tested by our QC department.
|
Product Information |
|
|
Product Name |
EF Floated Side Ballscrew End Support |
|
Model |

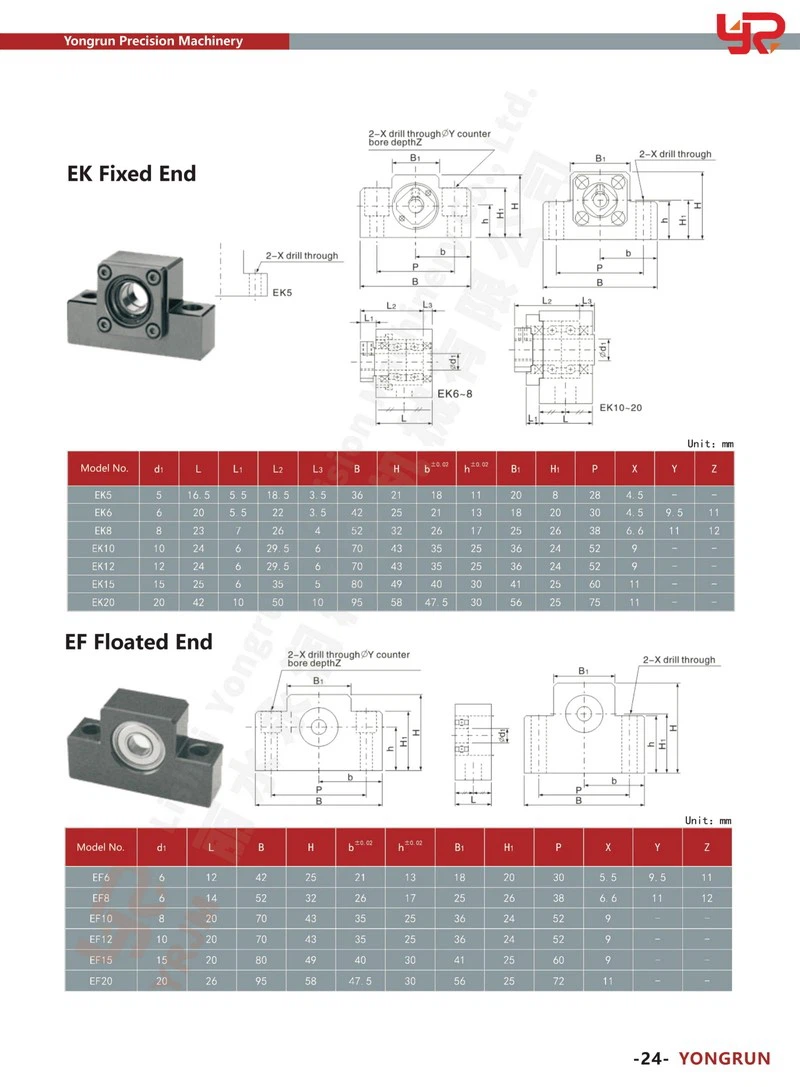

EK-5, EK-6, EK-8, EK-10, EK-12, EK-15, EK-20, EF-6, EF-8, EF-10, EF-12, EF-15, EF-20 |
|
Material |
Carbon steel,bearings steel |
|
Sample |
Free sample and catalogue available |
|
Definition |
The support seat is a key component that transmits various static and dynamic loads on the cross support and supports the cross support. |
|
Application |
CNC machines, medical and food machinery, fitness machinery, packaging machinery, printing machinery, and other machinery supporting equipment. |
|
Feature |
Support large axial forces Sealing characteristic Rigid construction |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
