Steel Ball Screw

The basic difference between lead screws vs ball screws is that a ball screw uses ball bearings to cast off the friction between the nut and screw and lead screws do not. Lead screws use deeper helical threads and a mating nut, which is usually made of a polymer composite or bronze.

Send Inquiry

Product Introduction

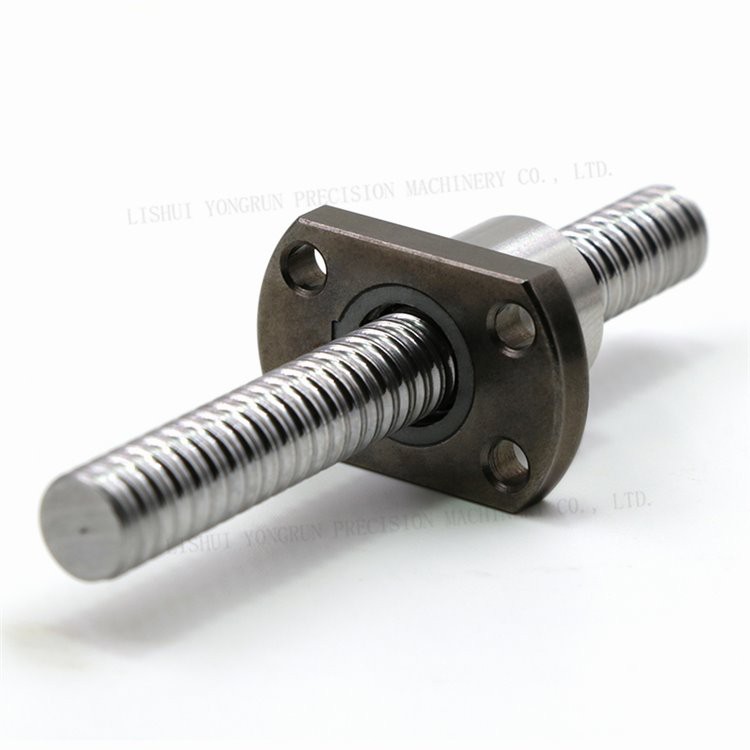

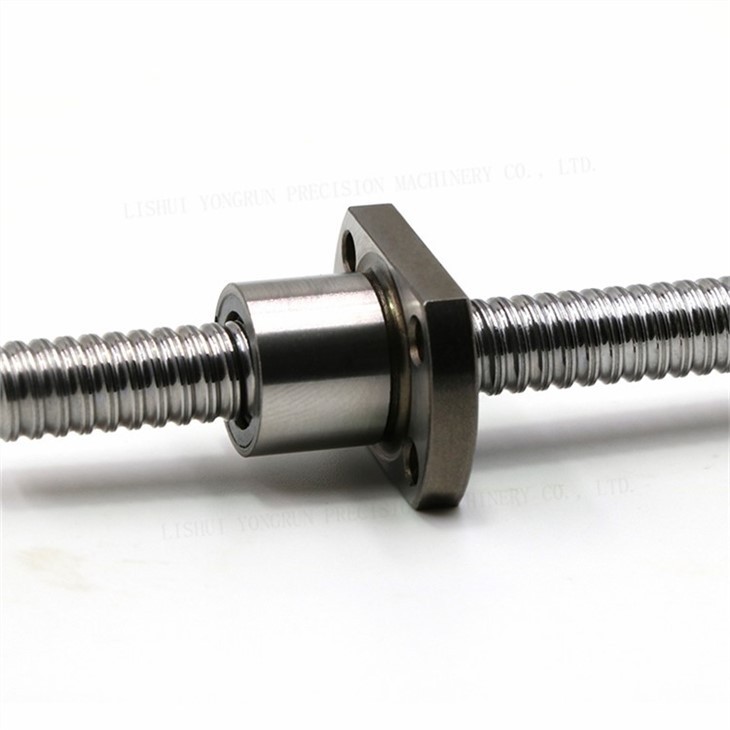

Steel Ball Screw

Product Details

Ball screw is made of screw, nut and ball. The characteristic is to flip the rotary movement into liner motion, which is a further extension and development of ball screw. The significance of this development is to move into a rolling bearing from sliding action; With little friction, ball screws are broadly used in more than a few industrial tools and precision instruments.

Product Description

How does a recirculating Steel metal ball screw work? As the screw or nut rotates, the balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the contrary end of the ball nut in a continuous path. Production system including raw material cutting, machine processing, grinding, add-ons cleaning, assemble, cleaning, stoving, oil coating, cowl pressing, testing, package. In the manufacturing process, the geometric accuracy control and the internal organization quality of the screw during the cold and hot processing are the main factors affecting the performance of the ball screw.

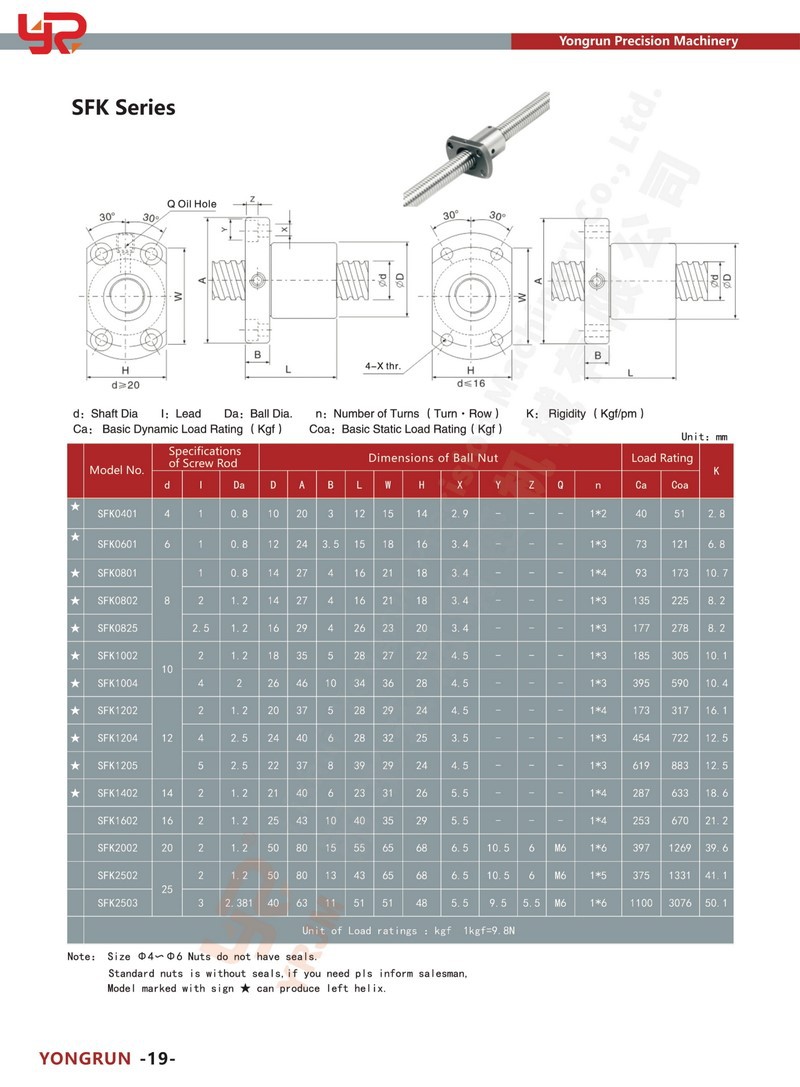

SFK-1

Product Information
Product Name	Steel Ball Screw
Material	Bearing steel, harden steel, chrome steel,
Length	Can be customized according to customers requirement
Application	CNC machine, 3D printing machinery, chemical machinery, woodworking machinery, engraving machines, window machines, high speed machinery, semiconductor equipment, robot, railways, automation application and etc.
Model No.	SFK0401, SFK0601, SFK0801, SFK0802, SFK0825, SFK1002, SFK1004, SFK1202, SFK1204, SFK1205, SFK1402, SFK1602, SFK2002, SFK2502, SFK2503
Our Services	According to drawings or samples for our customers to manufacture products.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
