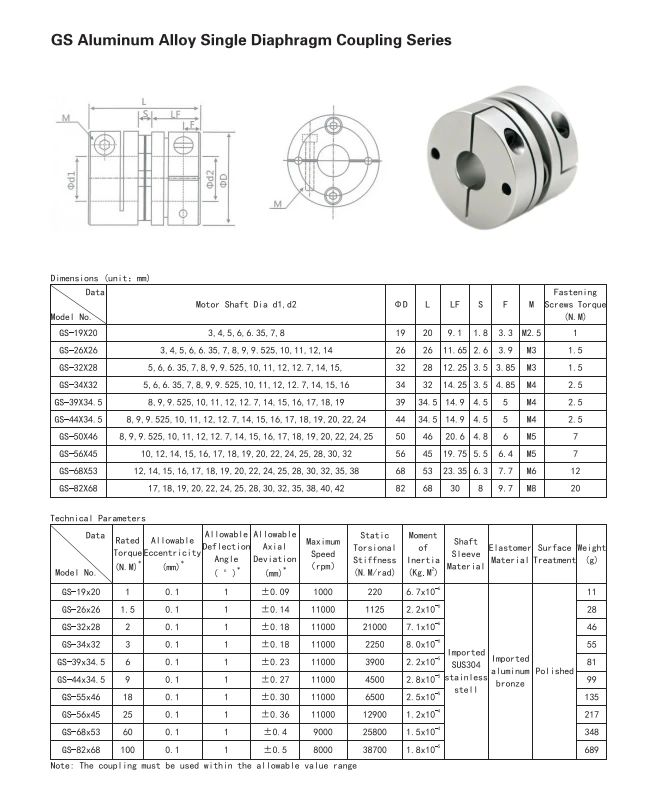

GS Aluminum Alloy Single Diaphragm Clamping

Description

The elastic diaphragm coupling relies on the metal diaphragm to transmit the torque and take in the deformation caused by using misalignment. There is no relative movement between the parts and no friction and wear, so there is no need for lubrication, which is in line with the development direction of process equipment without oil. The coupling is a rigid movable coupling. It compensates for the misalignment of the two shafts by the relative slip between the enamel surfaces. Therefore, the coupling needs to be lubricated, and the lubrication conditions determine whether the tooth coupling works nicely or not. key. It is especially prominent during operation, such as separation and leakage of oil under the action of centrifugal force, as well as the selection of lubricating oil, often because the lubricating design makes use of the bearing lubricating oil of the connected machine, rather than the bearing capacity of the appropriate bearing capacity. Gear oil. Therefore, the lubrication hassle of running gear couplings is particularly prominent. On the other hand, the wear caused by the relative sliding of the tooth surface will cause a series of problems such as sludge and imbalance. Therefore, although gear couplings were once the preference for high-power applications, with the emergence and improvement of diaphragm couplings, gear couplings have step by step faded out.

Product Description

The clamping shaft coupling of diaphragm coupling makes use of the tightening force of bolts to shrink the slit and lock the shaft tightly, so it is convenient to fix and disassemble and will no longer cause damage to the shaft. At the same time, there is no rotary clearance.

Positioning coupling is an built-in coupling, with zero rotary clearance, properly radial, angular, axial deviation compensation performance, clockwise and counterclockwise rotation characteristics are exactly the same, the main material is aluminum alloy.

The main application fields of clamping shaft coupling and positioning coupling are: machine tools, CNC milling machines, packaging machinery, woodworking machinery, printing machinery, stone machinery, textile machinery, metal plate machinery, etc.
