LM8UU Bearing

The linear bearing is composed of an outer cylinder, steel balls, steel ball retainers and retaining rings at both ends. The retainer is installed in the outer cylinder and is fixed by the buckles at both ends, so that the steel ball will circulate repeatedly on the track surface without falling off. The outer cylinder has undergone sufficient heat treatment to achieve a considerable hardness to ensure safety and longevity during exercise.

Send Inquiry

Product Introduction

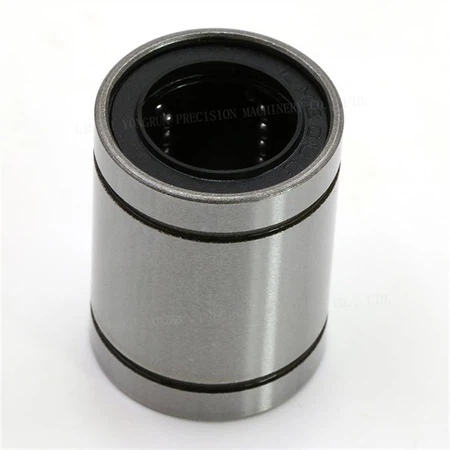

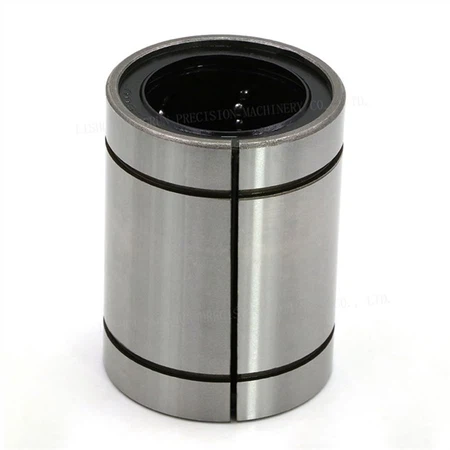

LM8UU Bearing

Product Description

Linear bearing is a linear motion system, which is used for the combination of linear stroke and cylindrical shaft. Because of the contact between the bearing ball and the outer point of the bearing, the metal ball rolls with the minimal friction resistance, so the linear bearing such as LM8UU bearing has small friction and is stable, and does not change with the bearing speed, so the linear motion with high sensitivity and high precision can be obtained. Linear bearing consumption also has its limitations, the most essential is the bearing impact load capacity is poor, and the bearing ability is poor, and secondly, linear bearing in high pace vibration and noise.

Product Applications

Linear bearings are more and more widely used in electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instruments, robots, tool machinery, CNC machine tools, automobiles and digital three-dimensional coordinate measuring equipment and other precision equipment or special machinery industry.

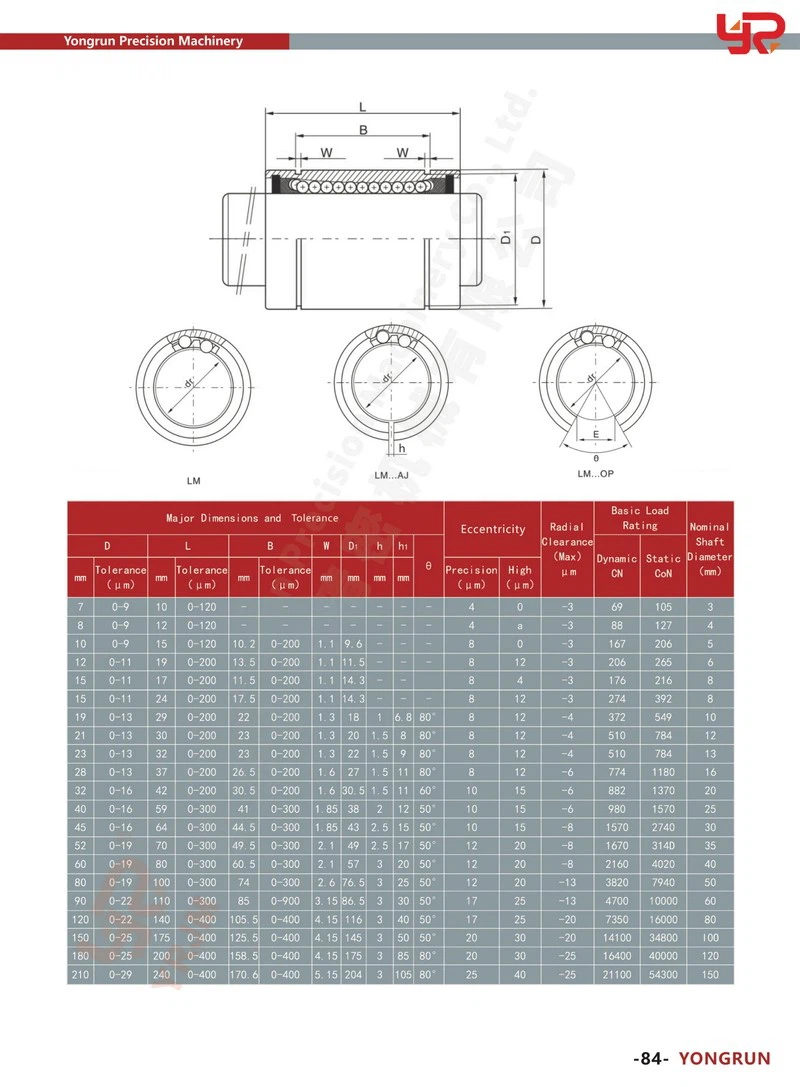

LM-1

Product Information
Product Name	LM8UU Bearing
Material	Bearing steel, Gcr15, stainless steel, chrome steel
Model No.	LM3-UU, LM4-UU, LM5-UU, LM6-UU, LM8S-UU, LM8-UU, LM10-UU, LM12-UU, LM13-UU, LM16-UU, LM20-UU, LM25-UU, LM30-UU, LM35-UU, LM40-UU, LM50-UU, LM60-UU, LM80-UU, LM100-UU, LM120-UU, LM150-UU
Our Services	1. Large inventories, 2. Small order accept, 3. OEM is supported, 4. Competitive prices and high quality, 5. Require little maintenance
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
