HGH25CA Linear Guide

Product Description Linear guides provide precision low friction guidance of payloads for industrial machine and instrument applications. One or multiple bearing blocks can be mounted on a linear guide rail. Each bearing block has four rows of recirculating balls that engage the precision ground rail allowing almost frictionless movement. These products are available in enterprise general sizes as small as size 15 up to size 65. Rail lengths up to 4000 mm ( 13.1 ft) long.

Send Inquiry

Product Introduction

Linear Guideway Block

Product Description

Linear guides provide precision low friction guidance of payloads for industrial machine and instrument applications. One or multiple bearing blocks can be mounted on a linear guide rail. Each bearing block has four rows of recirculating balls that engage the precision ground rail allowing almost frictionless movement. These products are available in enterprise general sizes as small as size 15 up to size 65. Rail lengths up to 4000 mm ( 13.1 ft) long.

Description

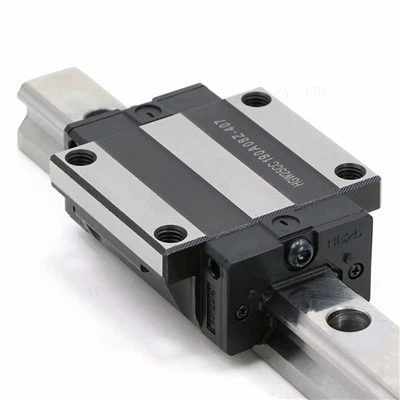

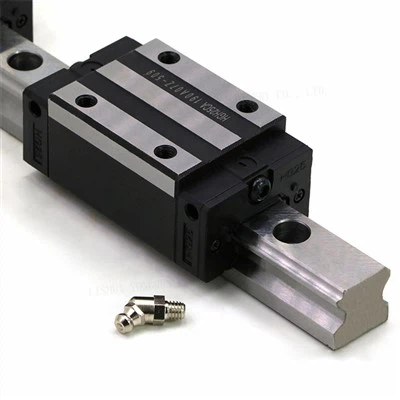

This square carriage is HGH25CA , it is linear slide bearings 23x48x40mm. It fits for HGR and HGT profile rails. HGH25CA linear guide rail block is extensively used on CNC machines such as CNC routers, CNC milling machines, CNC laser, CNC plasma machines, and different industrial linear motion systems.

HG series HGH 25 CA Linear guideways are designed with load capacity and rigidity greater than other similar products with circular-arc groove and structure optimization. It features equal load rankings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation error. Thus, HIWIN HG series linear guideways can achieve a long life with high speed, high accuracy, and smooth linear motion.

HGH

Product Information
Product Name	HGH25CA Linear Guide
Material	Bearing steel, Gcr15, stainless steel, chrome steel
Length	Can be customized according to customers requirement
Precision	P0(ABEC1), P6(ABEC3), P5(ABEC5), P4(ABEC7), P2(ABEC9)
Clearance	C0, C2, C3, C4
Vibration & Noisy	Z1, Z2, Z3, V1, V2, V3
Model No.	HGH15CA, HGH20CA, HGH20HA, HGH25CA, HGH25HA, HGH30CA, HGH30HA, HGH35CA, HGH35HA, HGH45CA, HGH45HA, HGH55CA, HGH55HA, HGH65CA, HGH65HA.
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
