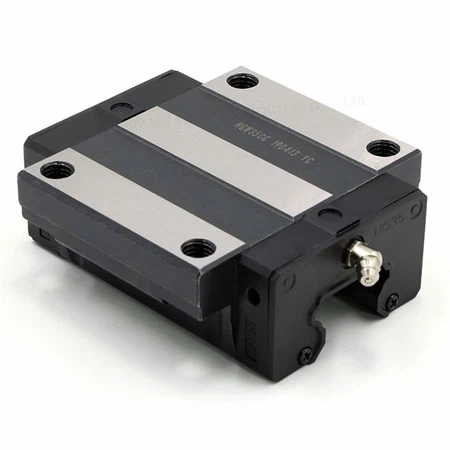

HGW 30cc Linear Guideway Block

High precision linear guide are used for linear reciprocating applications. They have a higher rated load than linear bearings and can withstand a certain amount of torque. High-precision linear motion can be achieved under high load conditions.

Send Inquiry

Product Introduction

High Precision Linear Guide

Description

HG Series HGW 30CC linear guideways Product Introduction HGW 30CC linear guideway block is a four-row single-circle solitary tooth contact linear slide. Product specification Product application HGW 30CC linear guideway block can be used in electric discharge machine, boring machine, wire...

Product Description

In the procedure of high precision linear guide processing, the outer cylindrical surface is made by means of turning and grinding technology, so they have to be placed with the core holes at each ends, which is to make sure that the linear guide rail design reference and the procedure reference coincide. Since the structure and coaxiality of the core gap have a top notch have an effect on on the processing satisfactory of the linear guide, in order to eliminate feasible deformation and defects, it is necessary to obtain accurate positioning.

HGW

Product Information
Product Name	HGW 30cc Linear Guideway Block
Material	Bearing steel, Gcr15, stainless steel, chrome steel
Length	Can be customized according to customers requirement
Precision	P0(ABEC1), P6(ABEC3), P5(ABEC5), P4(ABEC7), P2(ABEC9)
Clearance	C0, C2, C3, C4
Vibration & Noisy	Z1, Z2, Z3, V1, V2, V3
Model No.	HGW15CC, HGW20CC, HGW20HC HGW25CC, HGW25HC, HGW30CC, HGW30HC, HGW35CC, HGW35HC, HGW45CC, HGW45HC, HGW55CC, HGW55HC, HGW65CC, HGW65HC.
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.

Our Commitment

We make sure that every piece of equipment we use is maintained and calibrated to its authentic specifications. More importantly, we use only the most modern equipment. We evaluate projects to ensure that each product is within tolerance according to the process used to produce it each part will be wrapped in shielding layer through our skilled packaging human beings and then put in oversized box to keep away from any breakage. Our sales person will follow up with you after delivery to make certain that your parts meet your expectations.
