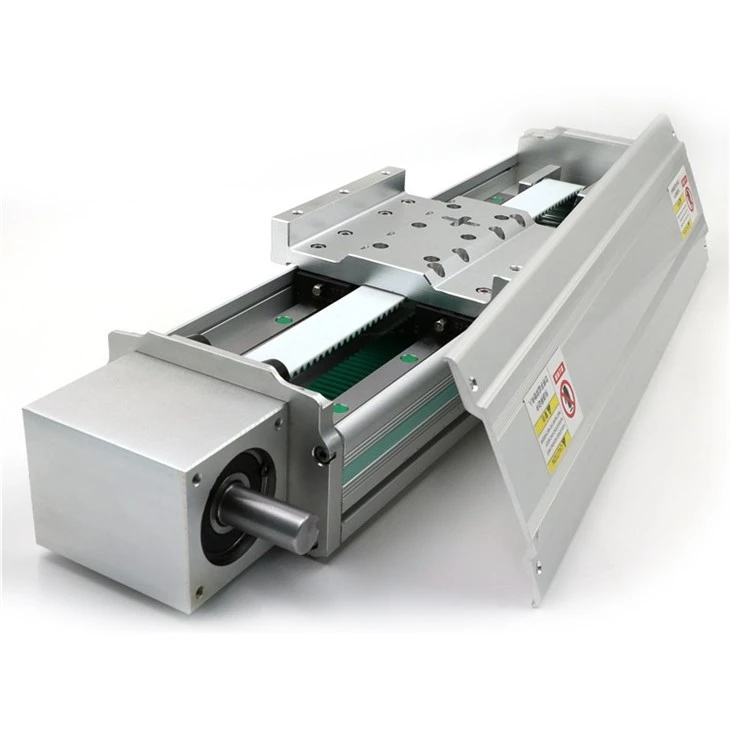

Belt Drive Linear Guide Rail Motion Slide Actuator

Description

Linear module is additionally acknowledged as linear guide rail, rectangular coordinate robot, linear slide table, etc, which is composed of linear guide rail, ball screw, belt,gear and rack and different linear transmission mechanism of automation unit. The linear and curved movement of the load can be assembled thru the combination of single or extra than one units, which makes the automation gear greater flexible, more convenient in design and greater correct in positioning.

Product Description

Features of single-axis robots:

Ball screw drive: It has the characteristics of high positioning accuracy, low friction, high rigidity and strong load capacity. However, the screw drive also has shortcomings, that is, it has a length limit and cannot be too long. When the length-to-diameter ratio of the screw exceeds a certain value, the screw will be affected by gravity, and the deflection will occur. As the deflection increases, resonance will easily take place during rotation, causing the screw to break. This problem has not been accurately obtained. The solution, so the screw drive is still limited. Synchronous belt drive: Synchronous belt drive features low noise, high speed and low cost. The timing belt has a price advantage in long-stroke transmission. However, in contrast to the screw drive, the accuracy of the timing belt is not as high as that of the screw.

Different drives: Single-axis robots are generally divided into two types of drives: one is a ball screw drive and the other is a synchronous belt (synchronous toothed belt) drive. Both of these are guided by linear guides. With servo motors or stepper motors, positioning, transfer and handling can be realized in one of a kind application fields.

It is an necessary hardware gear for industrial automation machinery, which can accurately control the accuracy and pace of transferring factors of mechanical equipment, and is appropriate for industrial automation fields such as chip mount equipment, laser cutting equipment, spray equipment, clinical equipment, battery tools and so on.
