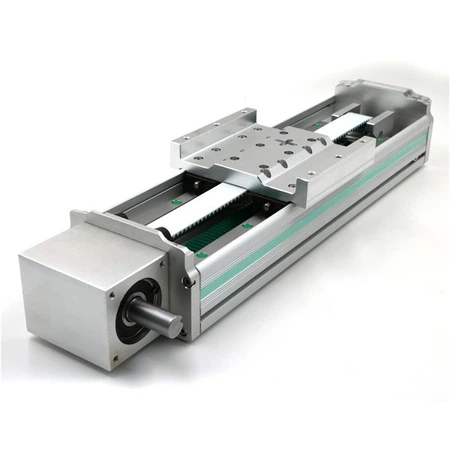

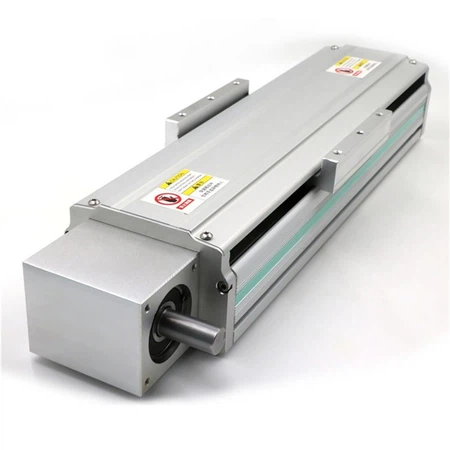

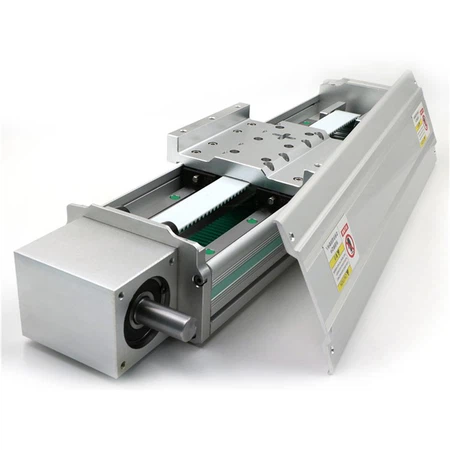

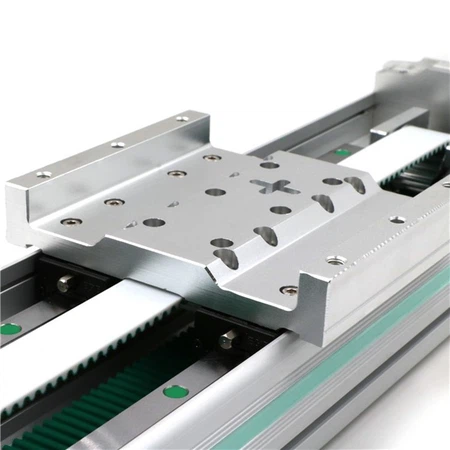

Belt Driven Linear Slide
The timing belt is a high-performance actuator that opens up new possibilities, such as pinch point-free configurations and the ability to work in dirty environments.
Product Introduction
Description
The timing belt is a high-performance actuator that opens up new possibilities, such as pinch point-free configurations and the ability to work in dirty environments. This actuator comes in three configurations: standard duty, heavy duty, and dual gantry. Each configuration is on hand in a wide variety of lengths to accommodate a vary of applications.
YR is a manufacturer of linear shaft, ball screw, linear guide, linear bearing and rod provide up bearing. With a wide range, properly quality, life like expenditures and stylish designs, our merchandise are drastically used in engraving machines, window machines, CNC Equipment and other industries.
Product Details
The working precept of the synchronous belt linear module is: the belt is established on the transmission shaft on each facets of the linear module, and as a electrical strength enter shaft, a slider for increasing equipment workpiece is fixed on the belt. When there is input, the slider is moved by using the usage of using the belt. Generally, the synchronous belt linear module has a specific design, and can control the elasticity of the belt motion on its side, which is convenient for the debugging of the equipment in the production process.
The synchronous belt linear module can choose to make bigger the rigid guide rail in accordance to different load needs to increase the stress of the linear module. Different specs of linear modules have different upper load limits.
The accuracy of the synchronous belt linear module relies upon on the quality of the belt and the processing process in the combination. The manage of the power input will also affect its accuracy.
Product Description
It can be used in combination with single or multiple axes. It is easy to in shape the required workpieces in a range of industries and it will become a simple and practical mechanical arm. It is mainly used in dustfree workshops or specific fields such as electronics and medical equipment, such as film, Depreciation, IC printing, CCD on line inspection, precise positioning detection of soldering automation equipment, laser plus (laser cutting/ laser marking/ laser engraving/ laser drilling, etc.) precision assembly, precision machine tools, semiconductor production equipment, location detection, electronic production equipment , and 3D printing equipment and different fields.
|
Product Information |
|
|
Product Name |
Belt Driven Linear Slide |
|
Material |
bearing steel guide, bearing steel aluminum base |
|
Stroke Range (mm) |
100-3750 |
|
Model No. |
YR-EGHP175F |
|
Max Speed(mm/s) |
2000 |
|
Positioning accuracy(mm) |
±0.08 |
|
Length |
Can be customized according to customers requirement |
|
Product Features |
Ease of maintenance, Low production cost, Long strokes, Multiple motor configurations, Quiet and smooth movement |
|
Our Services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time. |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
