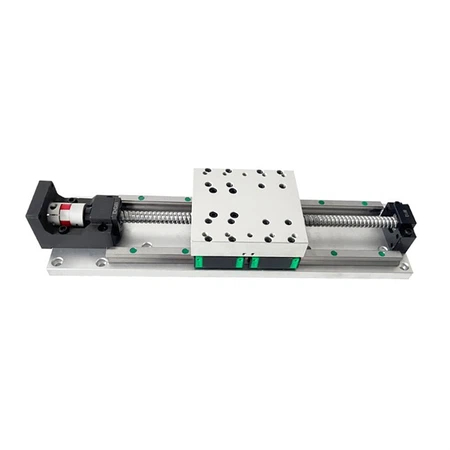

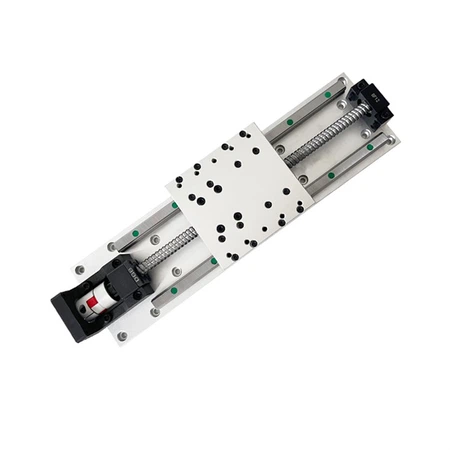

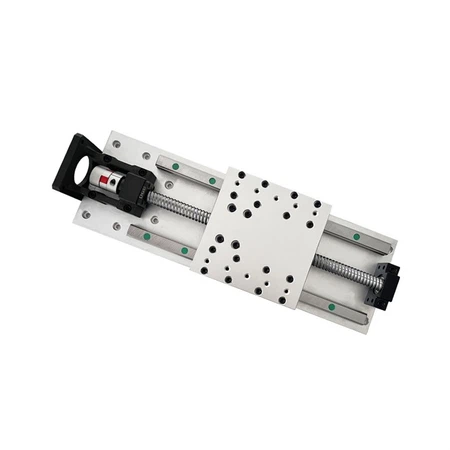

XY Linear Stages Linear Guide
Linear modules can be installed in accordance to every customer requirements.Its main motion way is to control the motor which connected with couplings and ball screw to move by CNC system.
Product Introduction
Description
Linear modules can be installed in accordance to each and every customer requirements. Its main motion way is to control the motor which connected with couplings and ball screw to move with the aid of CNC system. So it can move the sliding motion table straightly that's to say move from the front to back. Under distinctive environments and technical requirements, several linear modules can be composed and jointed to be 1 set robot arm to meet client's demand. For example: Glue Dispensing machine, industry, food machinery, ceramic machinery, welding machinery, spraying equipment, lifting platform, the dynamic seats, press machine, etc. With the development of intelligent manufacturing technology, linear modules will be widely used in quite a number areas.
Product Details
The HGHS160K single axis stage combines both ball screw and guideway to achieve higher overall performance on accuracy, stiffness, rapid installation, and space saving. The optimized U-rail now not only guides the motion of the slider being driven by using the ball screw, but also can be used as a structural component when assembled into a multi-axis motion system.
Linear stage actuator micro-feeding possibility. Because the ball screw makes use of ball motion, the starting force is very small, and there will be no crawling phenomenon like sliding motion, which can make positive the recognition accuracy. 10.16.20 screw can be used.
Product Description
XY Linear Actuators are a high quality and cost-effective solution for corporations to integrate into their OEM systems or in-house production systems. The value of these robots is that they save the client from the usage of their very own valuable human resources on design.
|
Product Information |
|
|
Product Name |
XY Linear Stages Linear Guide |
|
Material |
bearing steel guide, bearing steel aluminum base |
|
Stroke Range (mm) |
100-1800 |
|
Model No. |
YR-HGHS160K |
|
Maximum Payload |
Horizontal(kg): 200,100,60 Vertical(kg): 50,25,20 |
|
Max Speed(mm/s) |
250,500,1000 |
|
Positioning accuracy(mm) |
±0.03 |
|
Length |
Can be customized according to customers requirement |
|
Product Features |
Ease of maintenance, Low production cost, Long strokes, Multiple motor configurations, Quiet and smooth movement |
|
Our Services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
