PHSA10 Rod End

Rod ends consist of an eye-shaped head with vital shank which forms a housing for a spherical plain bearing. Normally, rod ends are available with left or right-hand, female or male threads.

Send Inquiry

Product Introduction

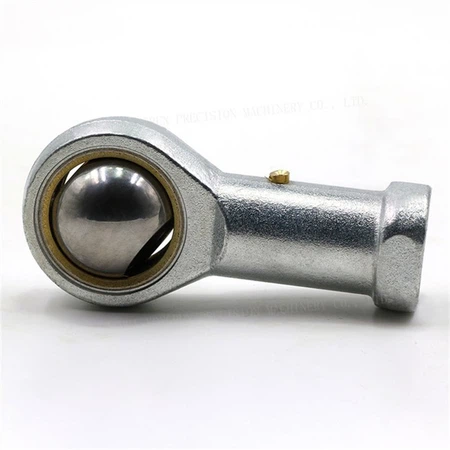

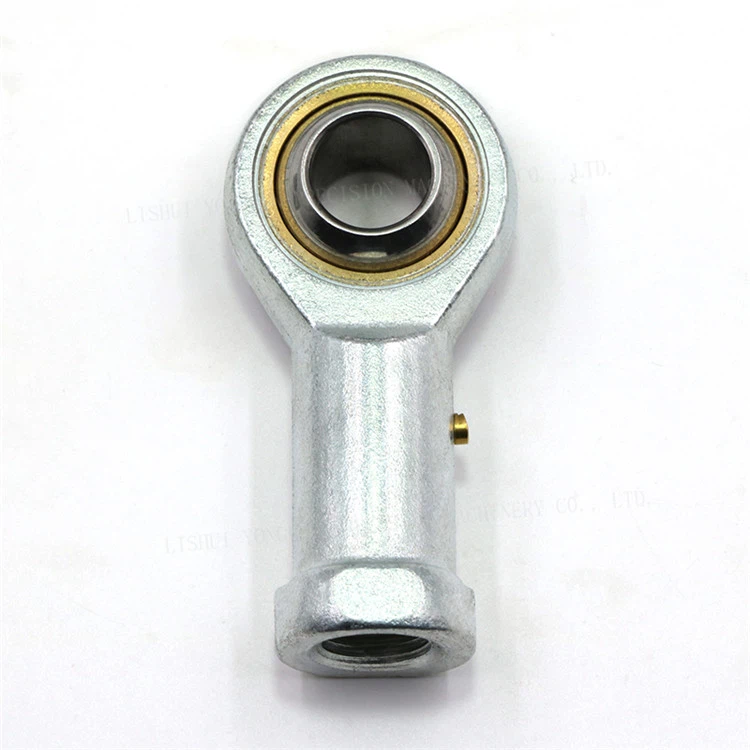

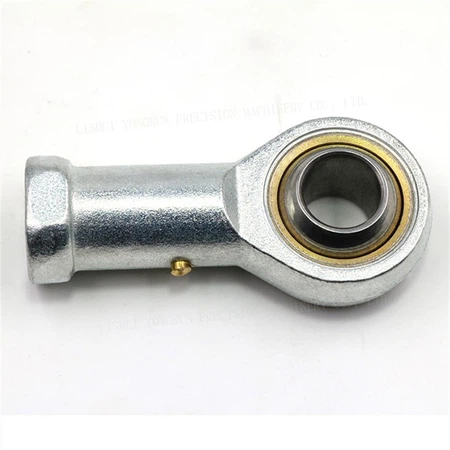

PHSA10 Rod End

Product Details

Rod end bearing consist of an eye-shaped head with integral shank forming a housing and a standard spherical plain bearing, or a spherical simple bearing inner ring, or a spherical plain bearing inner ring and a sliding layer between the bore of the head and the internal ring. As a rule, rod ends are on hand with left or right-hand female or male threads. Rod ends have the sliding contact surface combinations steel-on-steel, steel-on-bronze, steel-on-PTFE composite material, steel-on-PTFE fabric and steel-on-PTFE plastic.

Product Description

Rod ends with a left-hand thread are identified by an L in the designation prefix, otherwise the rod ends have a right-hand thread. For example, rod end PHSAL10 M10X1.5L has a left-hand thread whereas rod end PHSA10 M10X1.5 has a proper hand thread.

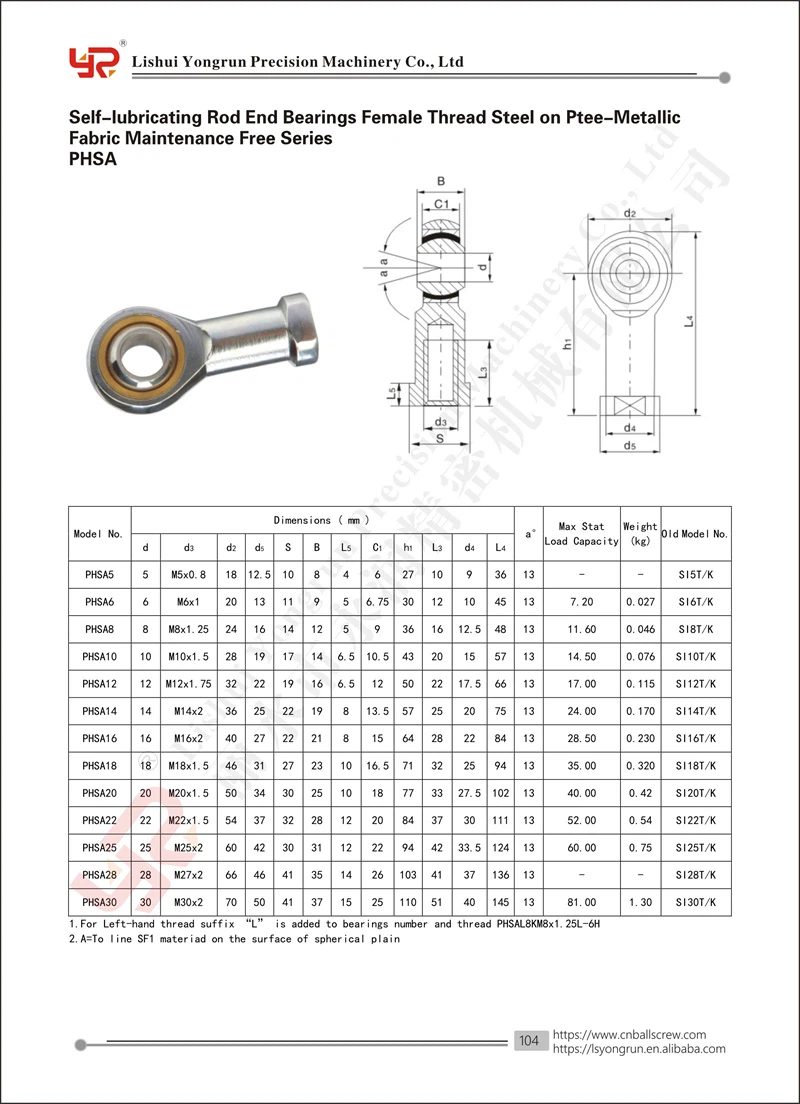

product-800-1104

Product Information
Product Name	PHSA10 Rod End
Material	Carbon steel 45#, Gcr15 bearing steel, brass or bronze
Additional Material	Zinc / chromium / nickel / multi colour can be plated, stainless steel material
Model No.	PHSA5, PHSA6, PHSA8, PHSA10, PHSA12, PHSA14, PHSA16, PHSA18, PHSA20, PHSA22, PHSA25, PHSA28, PHSA30
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
