SBR Linear Guide Rail

SBR guide rail is a kind of rolling guide rail, which is made of rolling steel balls to go back and forth between the slide and the guide rail in endless stroke. The load platform easily moves linearly with high precision along the track.

Send Inquiry

Product Introduction

SBR Linear Rail

Products Description

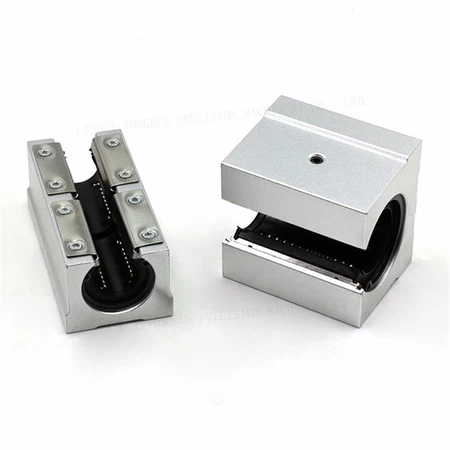

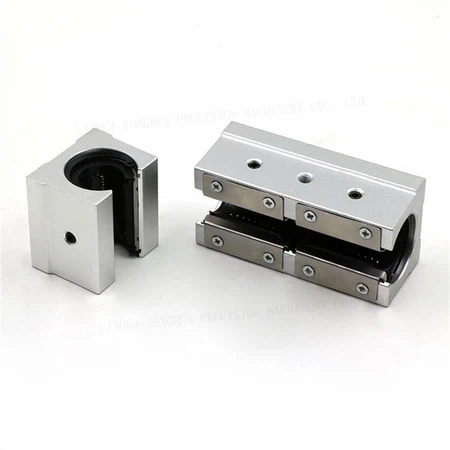

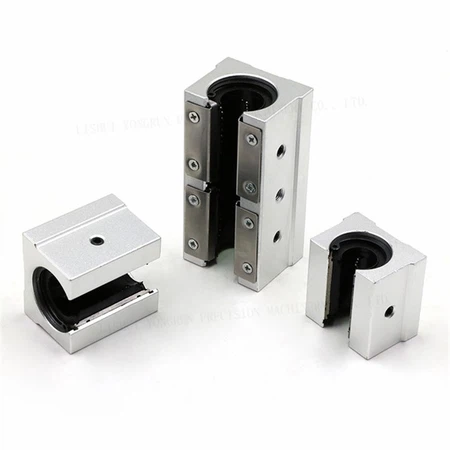

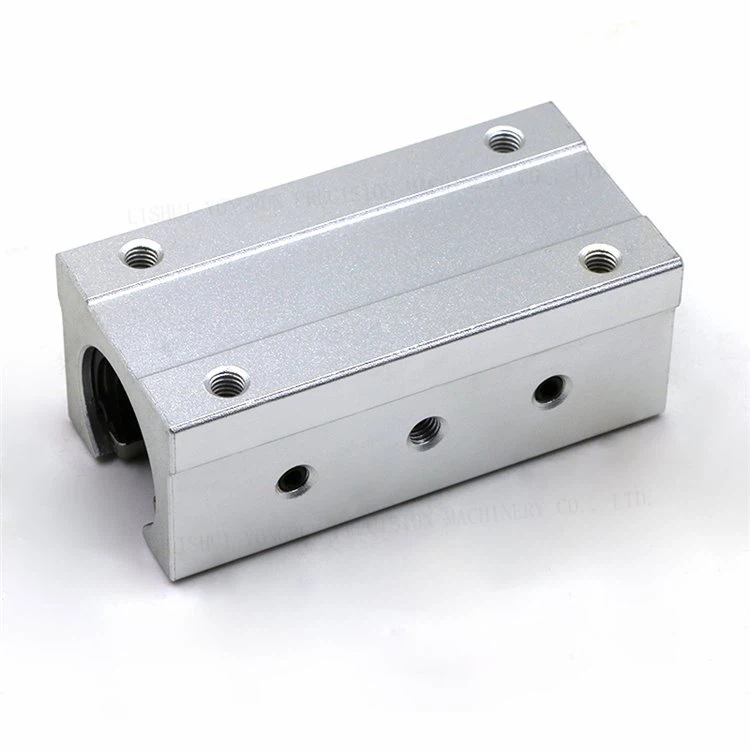

The SBR Linear motion ball slides are utilized for sliding along SBR Supported Rods. These slides feature a platform with four holes tapped for M5 screws, offering a convenient and secure mounting point for any mechanism requiring linear movement.

SBR units are round-type linear guides that facilitate stable and smooth linear motion, ideal for simple axis-linear movement. They offer standard guiding accuracy and can support low to medium loads. The key feature of this series is their easy installation-the aluminum housing is equipped with mounting holes for quick attachment to any machinery or equipment.

Benefits of SBR Linear Guide Rails

Straightforward and Simple Assembly
With a little practice, aanyone can assemble it in no time.. The precision of their transmission mechanism is largely predetermined because the machine tool's accuracy is very high, and all the rails are available as common parts. There shouldn't be any significant problems during assembly as long as the accuracy of the required parts meets the manufacturer's recommendations.

Excellent Machining Precision
As a standard product, SBR railing has achieved a safe, controlled range in both its material and production process. Therefore, the majority of precision machining machine tools utilize high-precision SBR rail guides. Serving as a machine tool guide, SBR railing significantly ensures the accuracy of the machine tool's machining.

High Efficiency
Many industrial applications rely on SBR rails as their foundation. They efficiently provide a strong, low-friction guiding system for weights ranging from a couple of pounds to many tons. Linear rails are suitable for virtually all performance needs in the industrial sector due to their size and precision ranges.

Uniqueness
SBR rails offer the advantage of accommodating non-hardened stainless steel shafting. This makes them appealing for harsh environments such as food processing as well as pristine settings like those found in the semiconductor and medical industries.

What's the difference between the SBR and TBR block units?

It's not overly complicated. The TBR block unit is wider and designed with a flange-a projecting flat extension that strengthens and maintains load attachment. Its flange structure enhances stability, making it suitable for both top-down and bottom-up mounting configurations.

SBR2

Product Information
Product Name	Round Linear Rail
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Application	SBR guide rails are widely used in automatic transmission devices, such as engraving machinery, woodworking machinery, printing machinery, industrial robots
Model No.	SBR12, SBR16, SBR20, SBR25, SBR30, SBR35, SBR40, SBR50
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
