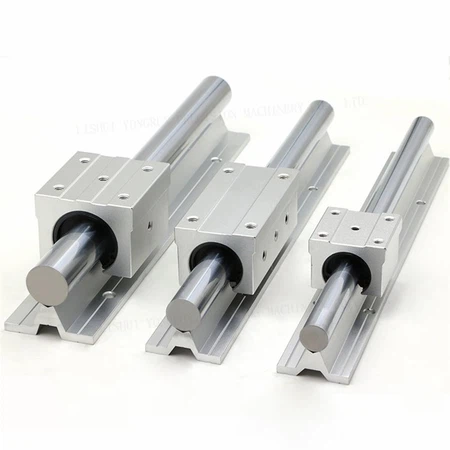

Shaft Linear Guide Rail

The SBR linear rail sequence is a sliding unit composed of box-type linear bearings, high-hardness shafts and anti-deflection aluminum rails. The screw holes required for the installation of the hardness shaft and the aluminum rail of the base are drilled after the shaft is hardened to ensure the accuracy of the product.

Send Inquiry

Product Introduction

SBR Linear Rail

Product Details

linear guide rail TBR/SBR series with easy serface, low friction, low noise level, they are widely used in linear motion system. for example, punch, tool grinder, automatic cutting machine, printer, card sorting machine, food packaging machine, different sliding parts on industrial machines.

Product Description

SBR guide rail is a kind of rolling guide rail, which is made of rolling steel balls to move back and forth between the slide and the guide rail in limitless stroke. The load platform easily strikes linearly with high precision alongside the track. Perfect for your DIY CNC routers, mills, lathes. Aluminum support rail with pre-drilled holes for ease of mounting. The linear shaft is a linear action system, which is used in conjunction with linear bearings and cylindrical shafts. Since the bearing ball is in factor contact with the bearing jacket, the metal ball rolls with the least frictional resistance, so the linear shaft has low friction, is fairly stable, does not change with the bearing speed, and can reap smooth linear action with high sensitivity and high accuracy.

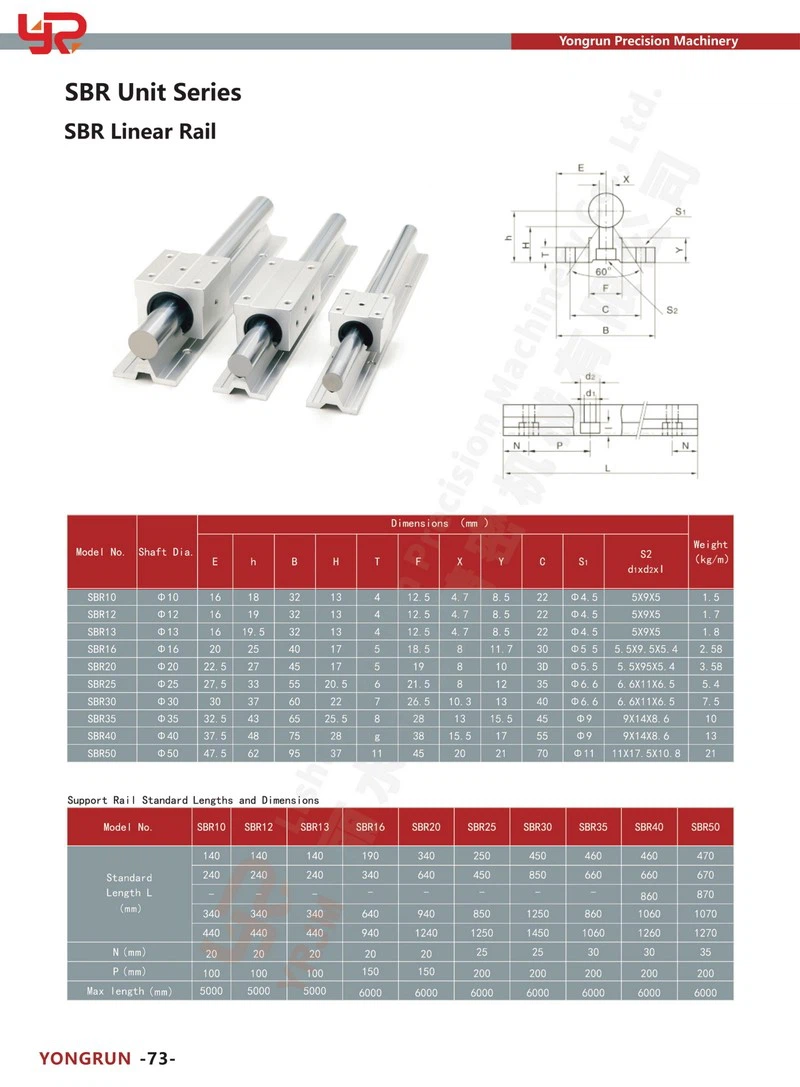

SBR1

SBR2

Product Information
Product Name	SBR Linear Rail
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Application	SBR guide rails are widely used in automatic transmission devices, such as engraving machinery, woodworking machinery, printing machinery, industrial robots
Model No.	SBR10, SBR12, SBR13, SBR16, SBR20, SBR25, SBR30, SBR35, SBR40, SBR50
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.

FAQ

1. Q: What is your transport description? If I want to know where is my order products?

A: We will show you the tracking number and checking link in time. You can get the latest news.

2. Q: Is your price competitive?

A: Only good quality product we supply. Surely, we will supply you best factory charge based on ideal product and service.

3. Q: Where is your product use in?

A: Our products’ applications include machine centers, NC lathes, grinding machines, precision machining machines, heavy slicing machines, automation devices, transportation equipment, measuring equipment, devices requiring high positional accuracy.
