Linear Shafting Support Rails
Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is no longer a concern. Unlike shaft support rails, blocks do not allow longitudinal passage of open-type ball bushing bearings.
Product Introduction
Description
Shaft support blocks are used for end or intermittent support where loads are light and slight shaft deflection is no longer a concern. Unlike shaft support rails, blocks do not allow longitudinal passage of open-type ball bushing bearings. Shaft support blocks enable clamping of shafts, shimming is suggested for high precision applications to do away with the effect of variations in floor of base or manufacturing tolerances between supports.
This support block is light weight and is suitable for use in linear motion applications, such as measuring systems, printing equipment, and CNC tools and so on.
Product Details

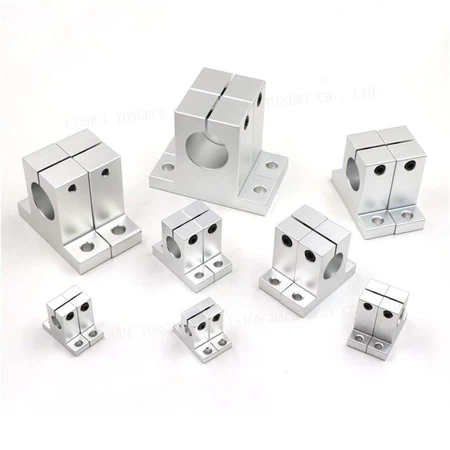

Linear Shaft Supports SK are made of aluminium. Their purpose is to provide reliable support for linear shafts.
They are easy to install and are used in linear motion applications. They function one screw (Allen) on the pinnacle for clamping the shaft and 2 holes in the base for fastening.
Product Description
The vertical shaft helps precision-machined aluminum movable units, have the benefits of interchangeability, low cost, and efficient design. Structure and characteristics. The linear bearing is composed of a shell, a special steel ball, a retainer, and a snap ring or sealing ring at both ends. The retainer is established in the shell and is steady through snap rings or sealing rings at each ends, so that the steel ball repeats circular action in the track surface of the retainer.
|
Product Information |
|
|
Product Name |
Linear Shafting Support Rails |
|
Material |
Aluminum alloy |
|
Size |
Standard dimension as the following product data show |
|
Application |
Linear shaft |
|
Model No. |
SK 8A, SK 10A, SK 12A, SK 13A, SK 16A, SK 20A, SK 25A, SK 30A, SK 35A, SK 40A, SK 50A, SK 60A |
|
Our Services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
