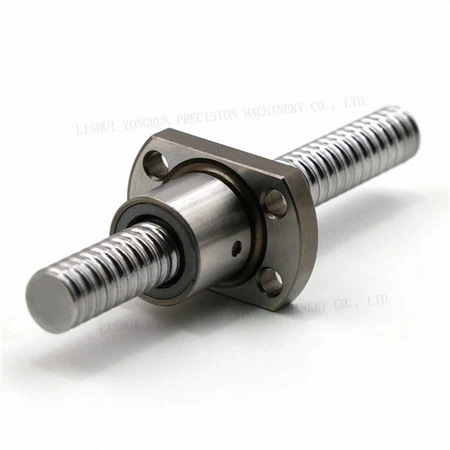

C7 High Rigidity Precision Ball Screw
This range of ball screws offers interchange ability, excellent value and a competitive choice to ground ball screws. The SFK range of ball screws with nut design according to DIN standard 69051, based on precision rolling technology, offer compact, highly efficient driving solutions.
Product Introduction
Description
This range of ball screws offers interchange ability, excellent value and a competitive choice to ground ball screws. The SFK range of ball screws with nut design according to DIN standard 69051, based on precision rolling technology, offer compact, highly efficient driving solutions.
With precision grinding of the nut outside diameter, flange face and nut thread, this design fits most positioning applications. If in addition positioning accuracy is required, SFK offers this range with backlash elimination or with preload.
Product Details
High rigidity precision ball screw is an advanced technology that plays a crucial role in the modern industrial revolution. It is a benchmark for precision and needs to be manufactured with the highest standards that meet the strict requirements of various industries.
This technology is highly sought after in industries such as aerospace, automotive, medical, and defense because of its high accuracy, repeatability, and low backlash. High rigidity precision ball screws are designed to transmit power with minimal loss, thus improving the efficiency and accuracy of various mechanical systems.
Manufacturers of high rigidity precision ball screws strive to produce products with high levels of reliability, durability, and quality. These ball screws undergo rigorous testing to ensure that they can handle various loads without losing their precision.
Product Description
Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.
|
Product Information |
|
|
Product Name |
C7 High rigidity Precision ball screw |
|
Material |
Bearing steel, harden steel, chrome steel, |
|
Length |
The length can be cut according to customer needs |
|
Advantage |
The number of working turns of the inner loop is only one turn in a row, so the loop is short, the balls are few, the ball fluency is good, and the efficiency is high. In addition, it has small radial dimensions, few parts, and simple assembly. |
|
Model No. |
SFK0401, SFK0601, SFK0801, SFK0802, SFK0825, SFK1002, SFK1004, SFK1202, SFK1204, SFK1205, SFK1402, SFK1602, SFK2002, SFK2502, SFK2503 |
|
Our services |
According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services. |
|
Product Package |
a. Plastic bag with box case or wooden case. We can provide shipping information to our customer at any time. |
|
Delivery time |
3~7 days for sample order, 15~20 days for bulk order. Depends on the actual shipping situation. |
