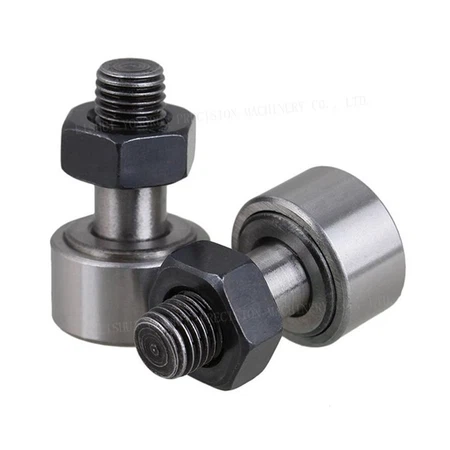

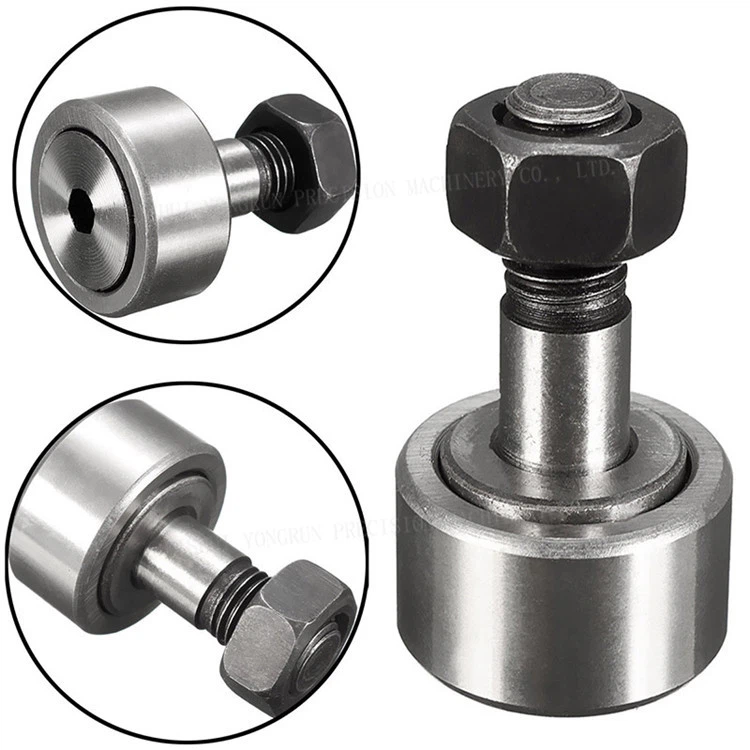

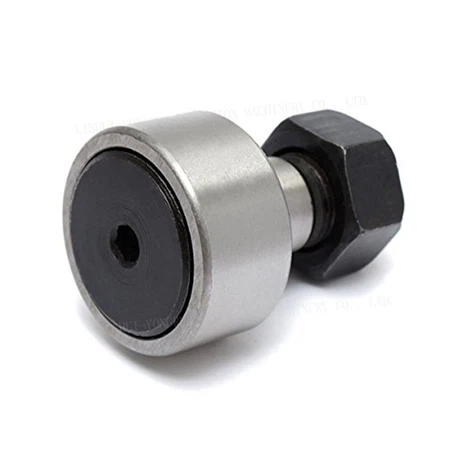

Cam Follower With Needle-Roller Bearing

Description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned going for walks surface and are supplied ready-to-mount. A narrow gap between the outer ring and the adjacent components forms a gap-type seal. The bearings can be relubricated by way of the stud.

Product Details

While roller cam followers are similar to roller bearings, there are quite a few differences. Standard ball and roller bearings are designed to be pressed into a inflexible housing, which provides circumferential support. This continues the outer race from deforming, so the race cross-section is relatively thin. In the case of cam followers the outer race is loaded at a single point, so the outer race needs a thicker cross-section to reduce deformation. However, in order to facilitate this roller diameter must be decreased, which also decreases the dynamic bearing capacity.

Product Description

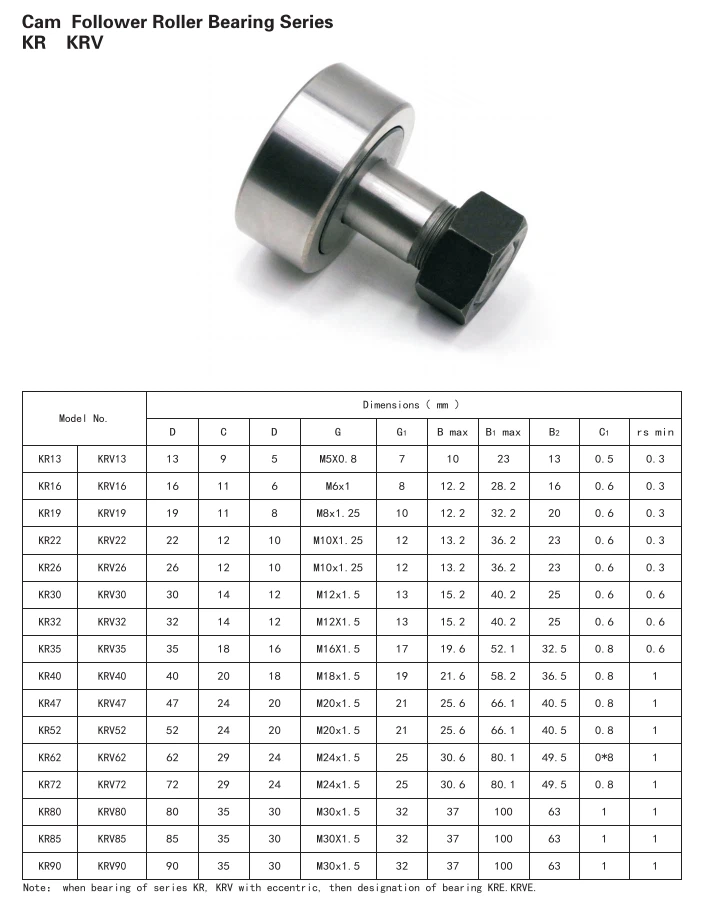

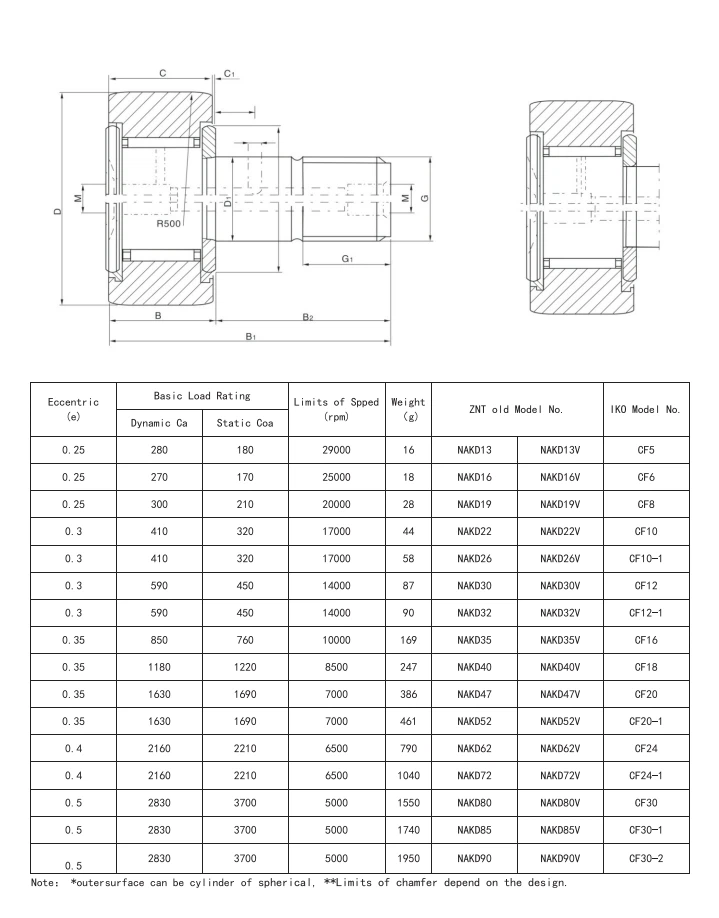

KR stud and bolt type cam follower , rod end bearing Stud type track rollers are similar in their construction to single and double row yoke type track rollers, except that the raceway is formed by a heavy-section roller stud with a fixing thread and lubrication hole.

Due to the thick-walled outer ring with profiled outside surface and the rolling element set, they can support high radial loads as nicely as axial loads arising from mild misalignment and skewed running; they are suitable for applications such as cam gears, bed ways and conveying equipment.
