Linear Motion System TBR

Linear round guide supported by a rail and a shaft, the surface of linear shaft used to be in particular grinded, hard-chromium plated and mirror polished. It has good wear resistance and corrosion resistance. It's widely used in computerized transmission device, appropriate for all kinds of cylinder, piston rod, packaging, woodworking, textile, printing and dyeing machinery, die-casting machine, injection molding machine, and different machinery with guide rod, plunger.

Send Inquiry

Product Introduction

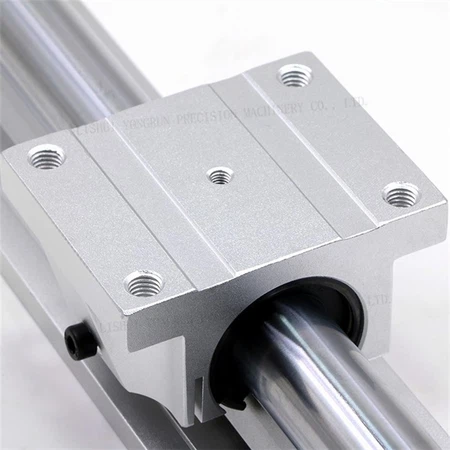

linear motion system TBR

Product Details

Product Description

Linear round rails are long established as machine elements for the execution of linear motions and have optimally withstood the take a look at of time in industrial applications. They can be used for example as adjusting units in automation tasks.

Linear round rails are robust, reliable, powerful and - due to their simple construction - very economical. The construction of the round rails, which is based on hardened guide carriages in combination with different linear-motion bearings or linear-motion bushes, allows many possibilities for variation. Rodriguez additionally offers sliding bearing variants.

In addition to the type of bearing, there is also a broad spectrum of guide elements to choose from. Mounting the guide shaft on different shaft supports and the use of open guide elements create additional probabilities for variations. Linear roundtrails with shaft support provide an economical and robust alternative to profiled rail guides.

single Shaft Assembly (SBR or TBR series) is a complete assembly which simplifies the use of a linear bearing in a mechanical positioning application. Each meeting has a metal shaft mounted to a anodized, precision machined, aluminum support. The pre-drilled base mounting holes supports allow for easy customer mounting. The SBR or TBR assemblies come in trendy lengths or customized length, and with shaft diameters from 16mm to 30mm

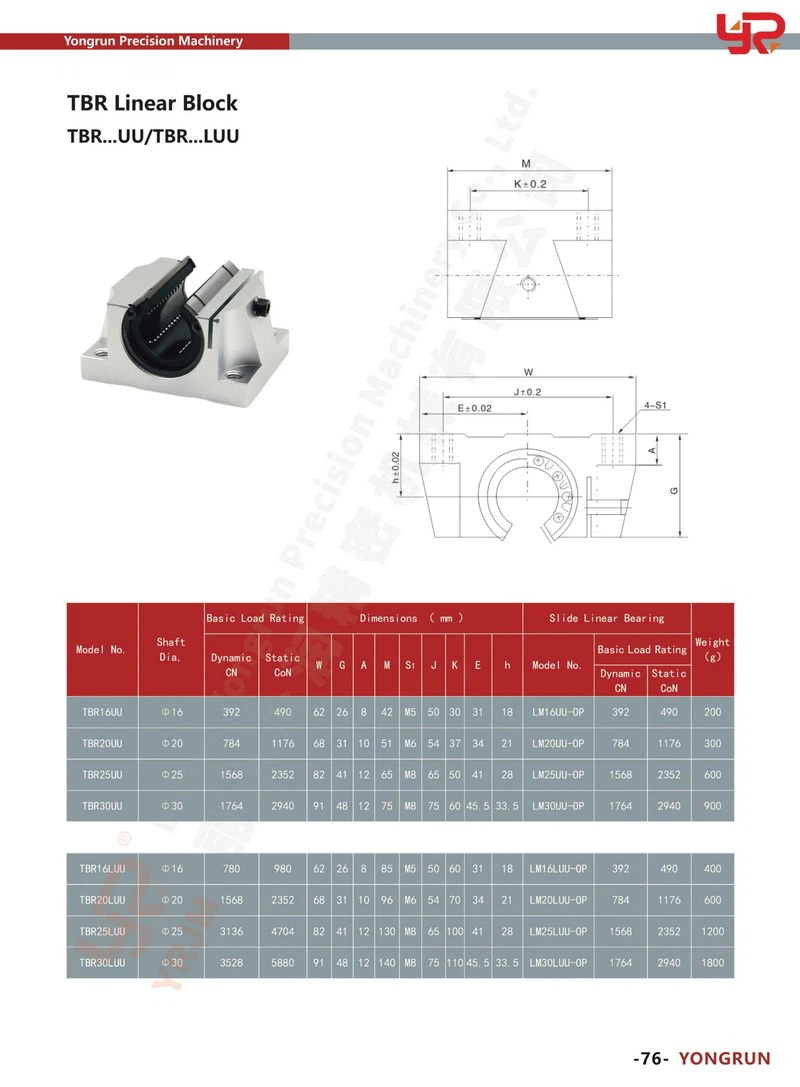

TBR1

TBR2

Product Information
Product Name	linear motion system TBR
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Feature	Smooth, good quality, long life, resistance to wear, dependable performance, high precision
Model No.	TBR16UU, TBR20UU, TBR25UU, TBR30UU, TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
