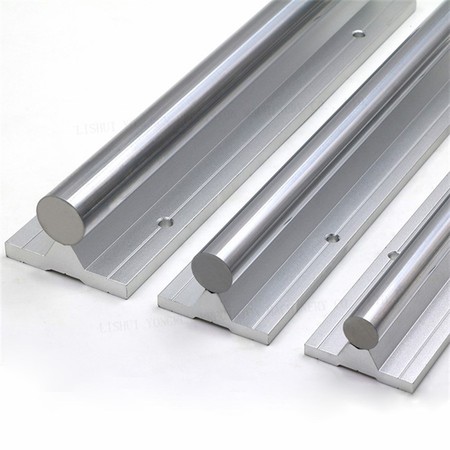

Circular Linear Roller Guide

TBR linear rail system has two mounting methods, up-mounting or down-mounting. And its assembly height is less than SBR linear rail, so it will be reachable for compact space. Linear guide rail CNC is broadly used in automatic transmission devices, such as engraving machinery, woodworking machinery, printing machinery, industrial robots.

Send Inquiry

Product Introduction

Linear Guide Rail CNC

Product Description

TBR linear guide rail/linear guide/linear rail TBR16 TBR20 TBR25 TBR30 linear sliding track CNC supported linear round rail. TBR16 TBR20 TBR25 TBR30 linear guide rail for CNC machine, linear motion guide rail, linear slide rail, precise linear sliding track TBR series. Our products are mainly exported to Vietnam, Thailand,Turkey, France, South Africa, India, the USA and different countries. Our company is relatively liked through our clients due to excessive fine and reasonable price. TBR series linear guides are widely used in turret milling machines, portal milling machines, lathes, spark machines, vertical lathes, grinders, woodworking machinery, printing machinery, textile machinery, packaging machinery and industrial machinery and different mechanical fields.

Description

Linear round rails are long established as machine elements for the execution of linear motions and have optimally withstood the test of time in industrial applications. They can be used for example as adjusting units in automation tasks.

Linear round rails are robust, reliable, powerful and - due to their simple construction - very economical. The construction of the round rails, which is based totally on hardened guide carriages in combination with one-of-a-kind linear-motion bearings or linear-motion bushes, allows many possibilities for variation. Rodriguez also offers sliding bearing variants.

In addition to the type of bearing, there is also a broad spectrum of guide elements to choose from. Mounting the guide shaft on one-of-a-kind shaft supports and the use of open guide elements create additional possibilities for variations. Linear roundtrails with shaft support provide an reasonably priced and robust alternative to profiled rail guides.

single Shaft Assembly (SBR or TBR series) is a complete assembly which simplifies the use of a linear bearing in a mechanical positioning application. Each assembly has a metal shaft mounted to a anodized, precision machined, aluminum support. The pre-drilled base mounting holes supports allow for easy customer mounting. The SBR or TBR assemblies come in widespread lengths or customized length, and with shaft diameters from16mm to 30mm

TBR1

TBR2

Product Information
Product Name	Circular Linear Roller Guide
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Feature	Smooth, Good Quality, Long Life, Resistance to Wear, Dependable Performance, High Precision
Model No.	TBR16, TBR20, TBR25, TBR30
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
