Round Linear Guide Rail

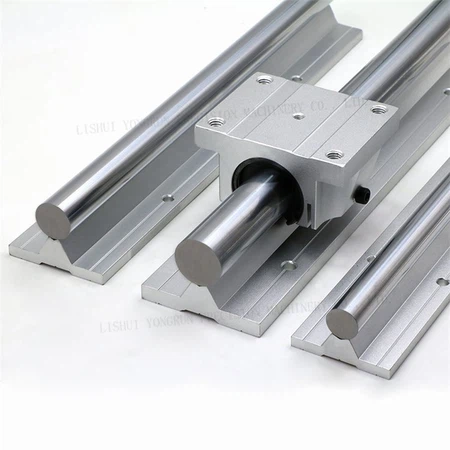

This is the sliding unit with the aluminium case, shafts and aluminium rail for preventing deflexion. This is the complete sliding unit structures and can be clamped simply tightening by bolt with high accuracy.

Send Inquiry

Product Introduction

Round Linear Guide Rail

Product Details

Linear round guide supported by a rail and a shaft, the surface of linear shaft was specially grinded, hard-chromium plated and mirror polished. It has good wear resistance and corrosion resistance. It's widely used in automatic transmission device, appropriate for all kinds of cylinder, piston rod, packaging, woodworking, textile, printing and dyeing machinery, die-casting machine, injection molding machine, and different machinery with guide rod, plunger.

Product Description

Support rail unit provides maximum rigidity and stiffness to the shaft throughout the entire stroke, and make certain the overall performance of the unit.

We can provide the SBR/TBR linear rail supports with diameter from 16 to 30, Max. length up to 6000mm.

TBR...UU TBR...LUU series:

TBR16UU, TBR20UU, TBR25UU, TBR30UU TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU

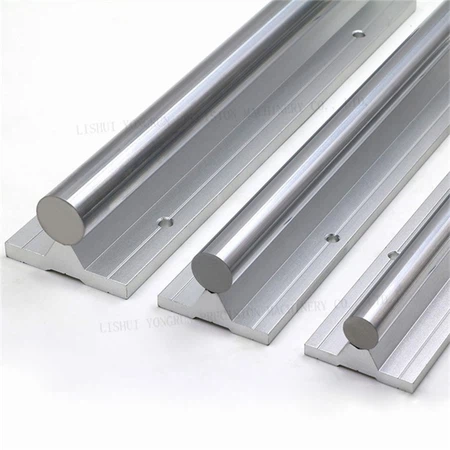

TBR1

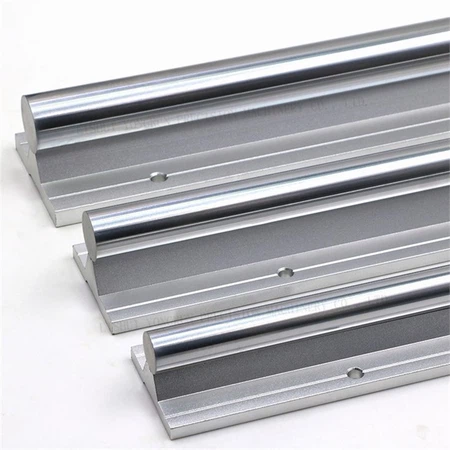

TBR2

Product Information
Product Name	Round Linear Guide Rail
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Feature	Smooth, good quality, long life, resistance to wear, dependable performance, high precision
Model No.	TBR16UU, TBR20UU, TBR25UU, TBR30UU, TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
