Shaft Support Rail TBR

Linear round guide supported by a rail and a shaft, the surface of linear shaft used to be specially grinded, hard-chromium plated and mirror polished. It has good wear resistance and corrosion resistance. It's widely used in automated transmission device, appropriate for all types of cylinder, piston rod, packaging, woodworking, textile, printing and dyeing machinery, die-casting machine, injection molding machine, and different machinery with guide rod, plunger.

Send Inquiry

Product Introduction

Shaft Support rail TBR

Product Details

Description

Linear motion shaft support rails are designed to support the shafts on which ball bushings run to prevent them from bending underneath load. The shaft support rails can be supplied as support rails only or as the complete assembly with the shafts attached.

This enables us to supply you with the desired length you require. These shaft supports can have the feet drilled and tapped at intervals to your requirements.

This type of linear arrangement can be greater forgiving of mounting accuracy in contrast to that of linear profile rail.

This type of product whilst offering flexibility on mounting tolerances does now not support extremely high loads and must always be operated in a parallel operation generally supporting two linear units on each side to prevent any crabbing of the linear motion.

Product Description

Support rail unit provides maximum rigidity and stiffness to the shaft all through the whole stroke, and make certain the overall performance of the unit.

We can provide the SBR/TBR linear rail supports with diameter from 16 to 30, Max. length up to 6000mm.

TBR...UU TBR...LUU series:

TBR16UU, TBR20UU, TBR25UU, TBR30UU TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU

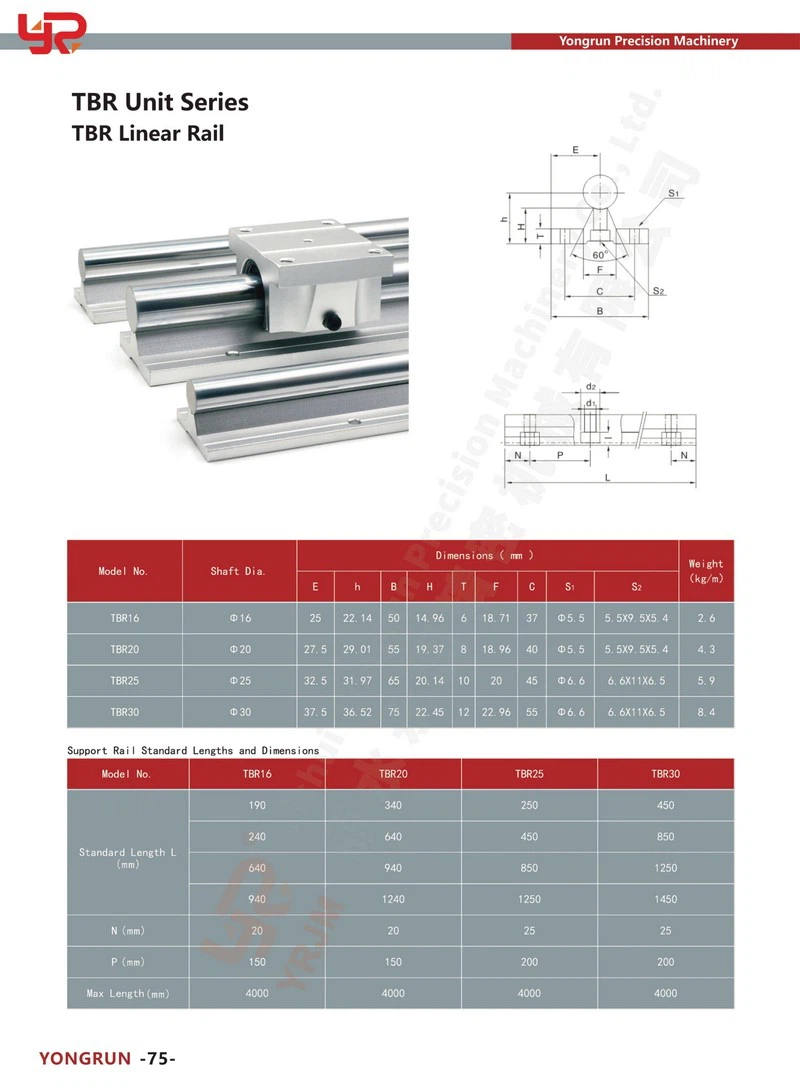

TBR1

Product Information
Product Name	Shaft Support rail TBR
Material	Carbon steel or bearing steel
Length	Can be customized according to customers requirement
Feature	Smooth, good quality, long life, resistance to wear, dependable performance, high precision
Model No.	TBR16UU, TBR20UU, TBR25UU, TBR30UU, TBR16LUU, TBR20LUU, TBR25LUU, TBR30LUU
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
