EK Support Units Square Type
Ball Screw Support Units are helpful dietary supplements to your Ball Screw System. Our current Ball Screw Accessories encompass fixed and supported-side support bearing assemblies for reasonable and heavy load applications. These ball screw support units provide useballscrew housing types4rs with the fundamental components (i.e. bearing locknuts, snap rings, etc.) for mounting screw shafts to their machine.
Product Introduction
Description
Ball Screw Support Units are helpful dietary supplements to your Ball Screw System. Our current Ball Screw Accessories encompass fixed and supported-side support bearing assemblies for reasonable and heavy load applications. These ball screw support units provide useballscrew housing types4rs with the fundamental components (i.e. bearing locknuts, snap rings, etc.) for mounting screw shafts to their machine.
Product Details
The Fixed-Side Support Units are available in three series, EK, BK, and FK. These support units are compact in size and allow for handy installation. The fixed-side support units are the driven side of the support unit and are coupled to the motor the usage of a coupling. These fixed-side support units come with a spacer and lock nut to secure the finished ball screw shaft to the support unit. All support units come with angular contact bearings or radial ball bearings (it count from accuracy class) which are assembled with the right preload and quantity of lubrication.
Product Description
The Support Unit comes in six types: models EK, FK, EF, and FF, which are standardized for the standard Ball Screw assembly provided with the finished shaft ends, and models BK and BF, which are standardized for ball screws in general.
The Support Unit on the fixed side contains a JIS Class 5-compliant angular bearing provided with an adjusted preload. The miniature type Support Unit models EK/FK 4, 5, 6 and 8, in particular, contain a miniature bearing with a contact mind-set of 45° developed exclusively for miniature Ball Screws.
This provides stable rotational performance with a high rigidity and an accuracy.
The Support Unit on the supported side uses a deep-groove ball bearing.
The internal bearings of the Support Unit models EK, FK and BK contain an appropriate amount of lithium soap-group grease that is sealed with a different seal. Thus, these models are capable of operating over a long period.
|
Product Information |
|
|
Product Name |
EK support units square type |
|
Model |

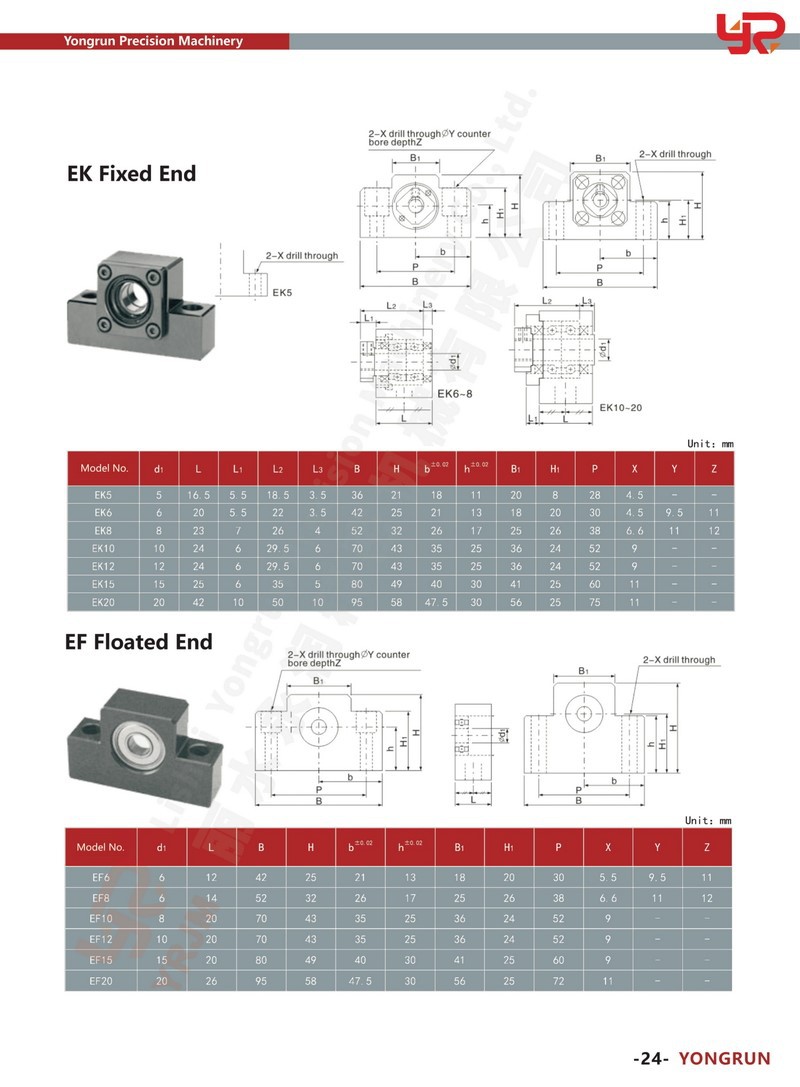

EK-5, EK-6, EK-8, EK-10, EK-12, EK-15, EK-20, EF-6, EF-8, EF-10, EF-12, EF-15, EF-20 |
|
Material |
Carbon steel,bearings steel |
|
Sample |
Free sample and catalogue available |
|
Definition |
The support seat is a key component that transmits various static and dynamic loads on the cross support and supports the cross support. |
|
Application |
CNC machines, medical and food machinery, fitness machinery, packaging machinery, printing machinery, and other machinery supporting equipment. |
|
Feature |
Support large axial forces Sealing characteristic Rigid construction |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
Hot Tags: ek support units square type, China, suppliers, manufacturers, factory, customized, wholesale, price, free sample
