Flanged Ball Screw Support Unit FK
This type of ballscrew support is very common in the DIY CNC world. It never had our preference, on the grounds that it's not so easy to mount a stepper motor or servo to this support. We prefer to use the FK type bearing blocks with MB Motor Backets in our applications. But we see that clients hold on requesting these blocks.
Product Introduction
Description

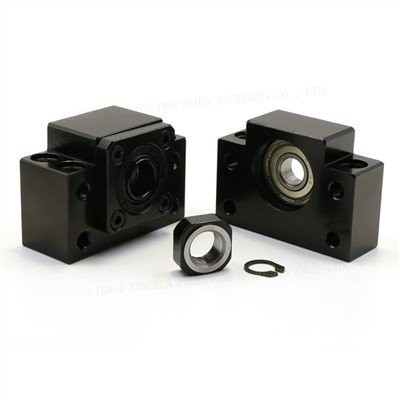

This type of ballscrew support is very common in the DIY CNC world. It never had our preference, on the grounds that it's not so easy to mount a stepper motor or servo to this support. We prefer to use the FK type bearing blocks with MB Motor Backets in our applications. But we see that clients hold on requesting these blocks. Further we see that when you wish to drive the ballscrew with a belt, this is a good and easy standard solution. So we decided to begin income of these products as well. There are many BK blocks on the market, and the problem is, they all look the same. Prices range greatly. We have chosen to buy/sell only the highest quality bearings (P5 Taiwan) suitable for ballscrews in quality class C3 through-C10. The blocks we have in stock with the high quality bearings is the type that can be made backlash free, by adjusting the pre-load on the angular contact bearings. Be aware that many webshops offer only the C7 type, which has normal deep groove bearings, and then don't have any pre-load, which ability you will have backlash in axial direction. When you add the BK support to your cart, the website, will advise the correct BF Floating Support, which is wished on the other side of the ballscrew.
Product Details
End supports are more than just an accessory; they are essential to the performance of linear ball screw assemblies. There are two primary variations of stop supports for a linear ball screw.
Simple or Floating Support – used for a single ball bearing to assist the ball screw assembly in opposition to radial loads.
Fixed Support – used for angular contact thrust bearings to counteract axial and radial forces contacting the ball screw.
Product Description
Bearing housing support units for ballscrew spindle can be used on fixed and supported ends of the ballscrew, which mounts the ballscrew in the desired position. Its compact size is effortless to install, mainly in the narrowed space. Since the bearings are greased and adjusted to the suitable position, there is no want for extra alignment or installation processes, which reduces set up time and maintenance.
Our merchandise are broadly used in automatic machinery and equipment, such as machine tools, printing machinery, chemical machinery, medical machinery, woodworking equipment and robots, etc.
|
Product Information |
|
|
Product Name |
Flanged ball screw support unit FK |
|
Model |
FK5, FK-6, FK-8, FK-10, FK-12, FK-15, FK-20, FK-25, FK-30, FF-6, FF-10, FF-12, FF-15, FF-20, FF-25, FF-30 |
|
Definition |
The support seat is a key component that transmits various static and dynamic loads on the cross support and supports the cross support. |
|
Application |
CNC machines, medical and food machinery, fitness machinery, packaging machinery, printing machinery, and other machinery supporting equipment. |
|
Feature |
Support large axial forces Sealing characteristic Rigid construction |
|
Delivery Time |
3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation. |
|
Product Package |
a. Plastic bag with box case or wooden case. |
