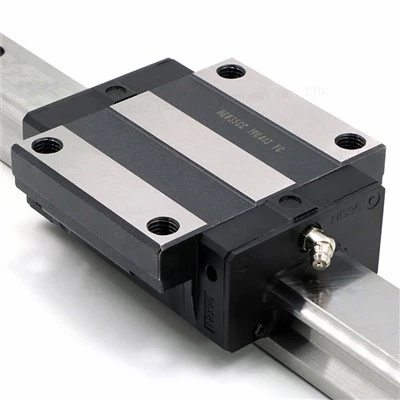

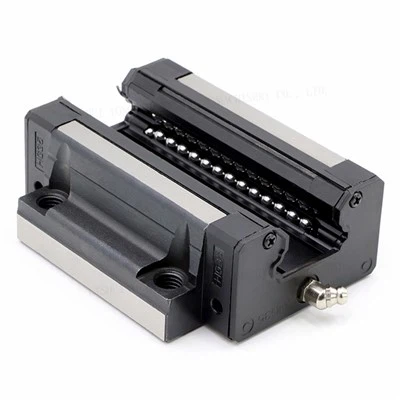

HGW20HC Linear Guide

High precision linear guide are used for linear reciprocating applications. They have a higher rated load than linear bearings and can withstand a certain amount of torque. High-precision linear motion can be achieved under high load conditions.

Send Inquiry

Product Introduction

HGW20HC Linear Guide

Description

Linear guides, also known as linear guideways, are a type of mechanical component used to provide precise linear motion in a range of industrial applications. Linear publications are commonly used in CNC (Computer Numerical Control) machines to provide precise movement of the cutting tool or workpiece.

Linear guides consist of a rail and a carriage. The rail is typically made of hardened metal and has a precision ground surface along which the carriage moves. The carriage, which is attached to the moving part of the machine, rides along the rail using a series of ball bearings or rollers to provide low-friction, precise movement.

Linear guides are used in a wide range of industries, including aerospace, automotive, and manufacturing. They are used in CNC machines, robotics, and other precision machinery to provide accurate and repeatable linear motion. The use of linear guides allows for faster and greater particular machining, resulting in higher-quality products and increased efficiency in the manufacturing process.

In summary, linear guides are essential components in precision machinery and are widely used in the manufacturing industry. They are known for their high accuracy, smooth operation, and long service life, and are a critical component in CNC machines and different precision machinery.

Product Description

Structure of Linear Guideways:
1.Rolling cycle system: slider, guide rail, give up cover, steel ball, ball holder;
2.Lubrication system: oil nozzle and tubing joint;
3.Dust-proof system: oil scraper, bad dirt seal dust-proof sheet, guide rail bolt cover, steel scrap

Advantages of Linear Guideways:
1.Easy to install ,direct locking with screw and worktable;
2.Design of the ball prepare to upgrade weight bearing capacity;
3.Long life with high speed,high accuracy and linear motion;
4.High speed, low noise;
5.High stress ,multiple precision

HGW

Product Information
Product Name	HGW20HC Linear Guide
Material	Bearing steel, Gcr15, stainless steel, chrome steel
Length	Can be customized according to customers requirement
Precision	P0(ABEC1), P6(ABEC3), P5(ABEC5), P4(ABEC7), P2(ABEC9)
Clearance	C0, C2, C3, C4
Vibration & Noisy	Z1, Z2, Z3, V1, V2, V3
Model No.	HGW15CC, HGW20CC, HGW20HC HGW25CC, HGW25HC, HGW30CC, HGW30HC, HGW35CC, HGW35HC, HGW45CC, HGW45HC, HGW55CC, HGW55HC, HGW65CC, HGW65HC.
Our Services	According to drawings or samples for our customers to manufacture products. We can support OEM/ODM services.
Product Package	a. Plastic bag with box case or wooden case. b. According to our customer's request. We can provide shipping information to our customer at any time.
Delivery Time	3~5 days for sample order, 7~10 days for small order, 10~20 days for bulk order. It depends on the actual shipping situation.
